Reznor Gas Fired Unit Heaters

Please follow and like us:

Ceiling Hung Vented Gas Unit Heaters

 Reznor Unit Heater Standard Features

* Sizes 30-125 certified for residential heating application
* Sizes 30-400 certified for commercial/industrial heating application* 82-83% Thermal efficient ~ TOP in its class!
* 50-60F Rise range* 115/1/60 Supply voltage
* 115 Volt open fan motor with internal overload protection* Transformer for 24-volt controls* Integrated circuit board with diagnostic indicator lights

* Fan relay (included on the circuit board)

* Multi-try direct spark ignition with 100% lockout

* Natural or propane single-stage gas valve
(field adjustable for operation to 9,000 ft elevation)

Above 6,000′ requires special ordered pressure switch
at additional cost

 * Vibration/noise isolated fan and venter motors
designed for low noise operation* 2-pt and 4-pt Suspension ~ standard on all sizes* External terminal strip for 24-volt wiring* External gas connection* Full fan guard ~ engineered for safety

NEW T-CORE2 design titanium stabilized aluminized steel heat exchanger (patent pending)

NEW T-CORE2 design single burner combustion system including a one-piece burner assembly (patent pending)

Scroll for Pricing and Specifications.
Reznor Model UDAP Unit Heater
Reznor Unit Heater
45,000 Through 400,000 BTU Models
Reznor Unit Heater
Easy Access To Components
Reznor Heater Venting Outlet
Induced Draft Venting
Can be Vented
Horizontal or Vertical
Does Not Have
Fresh Air For Combustion
5 Year Warranty On Any Part
That Fails Within Five Years
No One Else Offers This Warranty To Our Knowledge
Click Below For More Information at Reznor Web Site
www.rezspec.com

Pricing Below Is Your Cost
Price Does Not Include Shipping
Freight Cost Varies Depending on Your Location

Check out the Order Information page for how to order.

We Do Not Ship Reznor Unit Heaters via UPS
These Heaters Are Palletized To Prevent Damage
And Must Be Shipped via Common Carrier

Reznor Model UDAP Unit Heaters

~ PLEASE CONTACT US FOR ANY AVAILABLE DISCOUNTS FOR ONE OR MORE UNITS ~

Models Shown Here Are Our Normally Stocked Items24 Volt Thermostat Not Included
Natural Gas
BTU Input
Type of Control
Your Cost
Shipping Not Included
UDAP 45
45,000
24 volt
$ 773
UDAP 60
60,000
24 volt
$ 814
UDAP 75
75,000
24 volt
$ 853
UDAP 100
100,000
24 volt
$ 972
UDAP 125
125,000
24 volt
$ 1097
UDAP 150
150,000
24 volt
$ 1,161
UDAP 175
175,000
24 volt
$ 1,299
UDAP 200
200,000
24 volt
$ 1,383
UDAP 250
250,000
24 volt
$ 1,611
#9204 Robertshaw Thermostat
24 volt
 No Longer Available
Propane Conversion Kit
NG to LPG
$ 111

Specifications for Reznor UDAP Unit Heaters

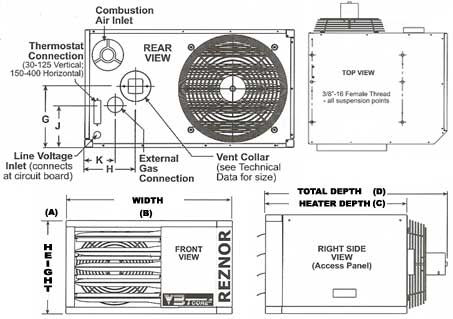

Reznor Dimensions

Model

BTU Input

Thermal
Efficiency
Dimensions
Vent
Size
Shipping
Weight
A
Height
B
Width
C
Heater Depth
D
Total Depth
UDAP 45
45,000
83%
12 1/8
26 5/8
21 9/16
26
4″
66 lbs
UDAP 60
60,000
83%
15 1/8
26 5/8
21 9/16
27
4″
74 lbs
UDAP 75
75,000
83%
15 1/8
26 5/8
21 9/16
27 5/8
4″
79 lbs
UDAP 100
100,000
83%
23 1/8
26 5/8
21 9/16
28 5/8
4″
118 lbs
UDAP 125
125,000
83%
23 1/8
26 5/8
21 9/16
29 3/8
4″
123 lbs
UDAP 150
150,000
83%
20 1/8
38 3/16
35 3/8
42
5″
204 lbs
UDAP 175
175,000
83%
20 1/8
38 3/16
35 3/8
42
5″
219 lbs
UDAP 200
200,000
83%
20 1/8
38 3/16
35 3/8
42
5″
219 lbs
UDAP 250
250,000
83%
26 1/8
38 3/16
35 3/8
42
5″
257 lbs

Reznor V3 Series Model UDAP gas-fired unit heaters are available in 14 sizes ranging from 30,000 to 400,000 BTUH gas input. Sizes 30-125 are approved for residential application. All sizes are approved for commercial/industrial installations. Model UDAP heaters are designed for 82-83% thermal efficiency and are approved for installation in the United States and Canada by the Canadian Standards Association(CSA).

Reznor V3 Series unit heaters have a refreshing new appearance with a glossy white cabinet finish, unique REZNOR mitered corner and less visible hardware. Each size cabinet is easily suspended from either 2 or 4 suspension points.  The low voltage terminal strip on the outside of the cabinet makes connecting control wiring easy with no panels to remove. The addition of a”G” terminal to the strip, along with the new design of the circuit board, allows for fan only operation (without adding relays). All units have a factory installed gas line nipple to the exterior of the cabinet for easy gas service connection.

The preeminent new internal feature is the T-CORE2 heat exchanger and single burner combustion system. Other standard features include a single-stage gas valve, multi-try direct spark ignition with 100% lockout, pressure switch to verify vent flow, resiliently isolated venter motor, venter wheel with improved housing, resiliently isolated axial fan and motor assembly, and a high-temperature limit control. Sizes 30-125 also include a flame rollout safety switch. The operation is controlled through an integrated circuit board. The circuit board monitors heater operation and has LED diagnostic indicator lights to identify abnormalities in control functions.
